Many Texas cities ask for a site plan before you build or replace a fence. We draw the fence run with its height, material and gates, and show every property line, easement and corner sight line the reviewer checks.

Satisfaction guaranteed badgeMoney-back guarantee badge24 hour fast turnaround badge

Get a free quote

Send the address and project. We reply with what your city needs and a price.

Add your name.
Add a valid email so we can send the quote.
Pick the project type.
Add the property address.

Free quote. No obligation. We reply in business hours.

Texas-focused permit drawings
Scope confirmed before drafting
Residential + commercial support
All 254 Texas counties
Revision support within scope
Illustrative Texas fence project visual
Illustrative Texas fence project visual
Project-specific permit review

What the reviewer needs to understand quickly

A strong permit set makes the project scope obvious before the reviewer starts checking individual dimensions and details. For this project type, the drawing package commonly needs to communicate:

  • Fence alignment and property boundaries
  • Fence height and material
  • Gate locations and widths
  • Easements, sight triangles and access
  • Relationship to pools, driveways and corner lots

Project image is an illustrative planning visual. Permit drawings are prepared from your actual property and project information.

What a Texas fence site plan shows

Every plan is drawn for your actual lot from your survey or plat, with the details your reviewer checks first.

  • Property lines and lot dimensions
  • Fence location drawn along the run
  • Fence height and material
  • Gates and their swing
  • Existing house and structures
  • Easements and alleys the fence crosses
  • Corner-lot sight triangles
  • Street right-of-way
  • Pool barrier sections where a pool exists
  • North arrow, scale and legend
Backyard fence planned on the site plan
Backyard fence planned on the site plan

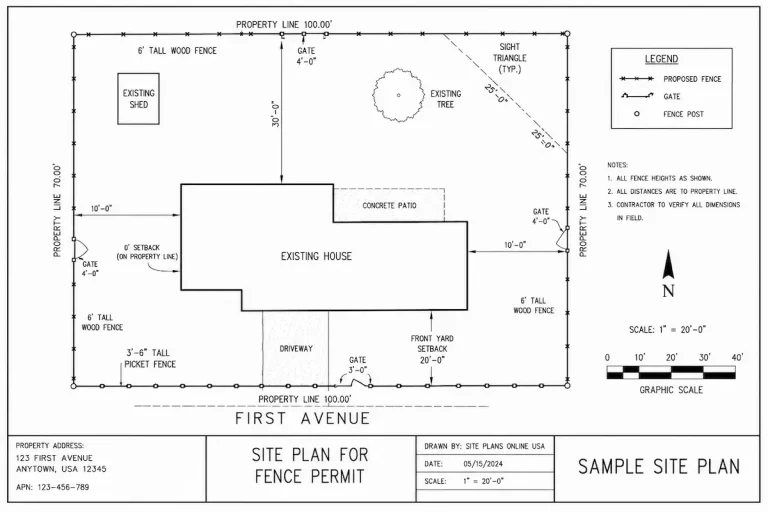

Fence permit site plan with lot lines and gates
Fence permit site plan with lot lines and gates
Plot plan prepared for permit review
Plot plan prepared for permit review
STREETPROPERTY LINE 80 FT10 FT UTILITY EASEMENTEXISTING HOUSE2,150 SFDRIVE6 FT WOOD PRIVACY FENCEGATE 4 FTSIGHTTRIANGLESIDE STREET1234567N030 FTSAMPLE DRAWING
Sample layout for illustration. Your plan is drawn from your own survey or plat.

Example fence permit site plan

This is the kind of drawing your permit office reviews. Each numbered item is something we show on your plan.

  1. 1Property lines with dimensions
  2. 2Fence run with height and material
  3. 3Gates with width
  4. 4Utility easement the fence crosses
  5. 5Corner-lot sight triangle kept clear
  6. 6Existing house
  7. 7Street right-of-way
Get a plan like this

Fence projects we draw site plans for

Tell us what you are building and we draw the plan your city expects for that project.

New residential fences

Wood, iron, vinyl and masonry fences for homes.

Fence replacement

Replacement runs where the city requires a permit.

Pool barrier fences

Fences and gates that form the pool barrier.

Corner-lot fences

Layouts that keep sight triangles clear.

Commercial and security fences

Perimeter fences, gates and access for businesses.

Retaining walls with fences

Fence on top of a wall shown with wall height.

Plans and projects like yours

A look at the drawings and project types this service covers in Texas.

Corner lot with easements and setback lines
Corner lot with easements and setback lines

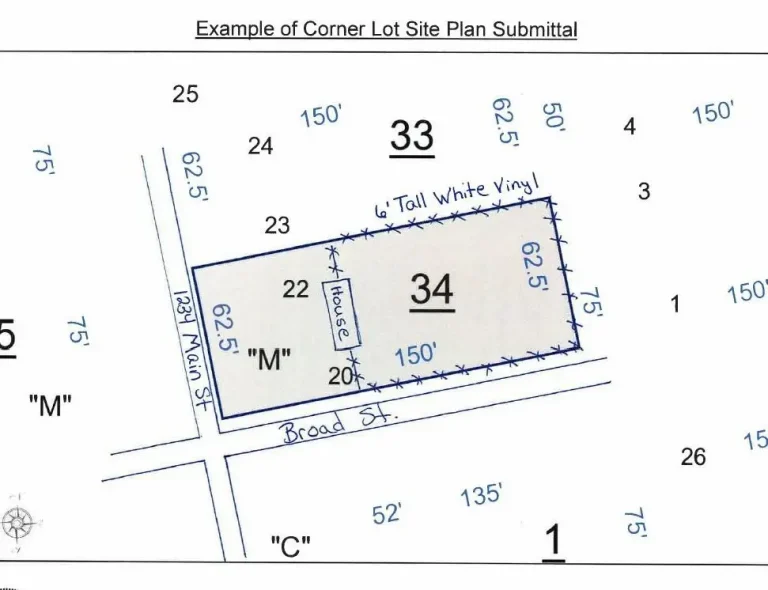

Corner lot plan with lot numbers and dimensions
